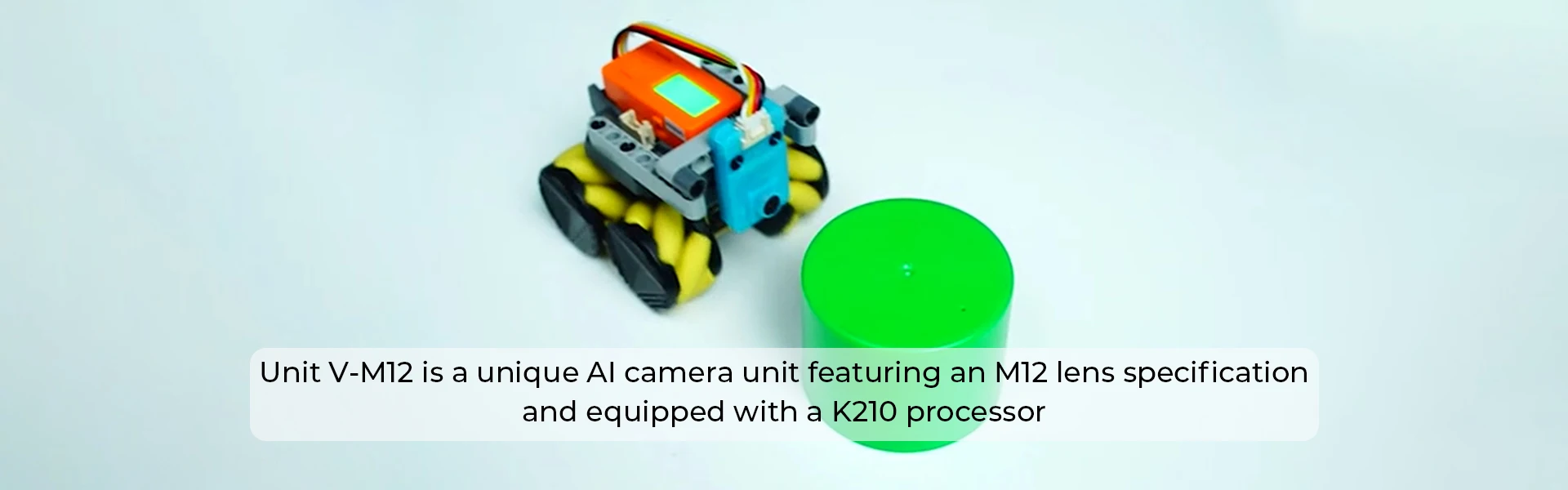

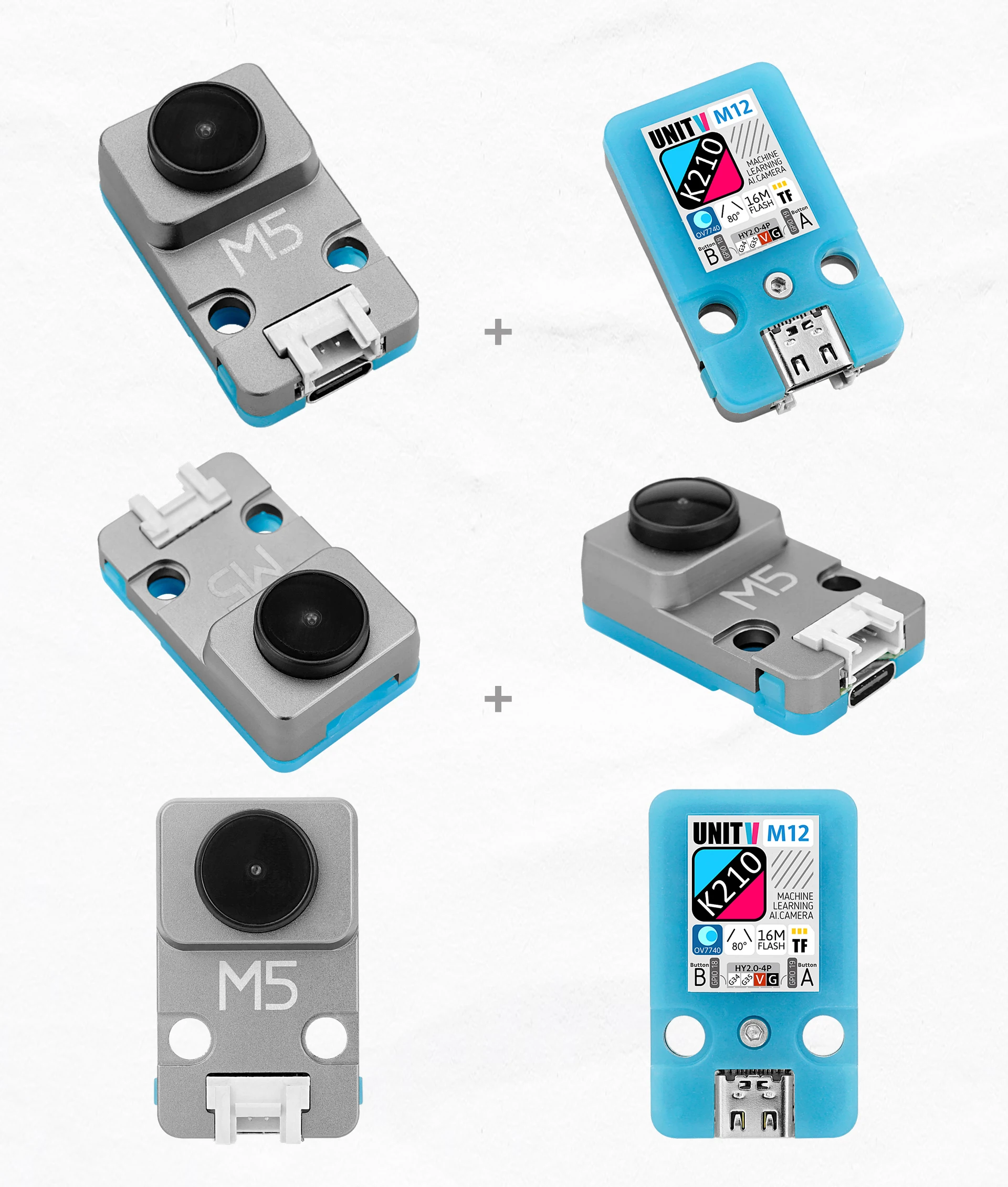

UNIT-V M12 is an AI camera unit with M12 lens specifications and K210 processor, which integrates dual-core 64-bit RISC-V CPU and neural network processor edge computing system-on-chip, it equippes with M12 optical lens OV7740 wide-angle camera module (can replace other M12 lenses), the body is equipped with two programmable buttons and TF card expansion slot. Its bottom provides an HY2.0-4P interface and a TYPE-C interface for data connection to the controller. The UNIT-V M12 AI camera is very small, it is suitable for embedding in various devices, with machine vision processing capabilities, supporting a variety of image recognition capabilities (such as real-time acquisition of the size and coordinates of the detected target Real-time acquisition of the type of detected target), and it can perform convolutional neural network calculations, which is a low-threshold machine vision embedded solution.
Features
* Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
* Dual Independent Double Precision FPU
* 8MiB 64bit width On-Chip SRAM
* Neural Network Processor(KPU) / 0.8Tops
* Field-Programmable IO Array (FPIOA)
* AES, SHA256 Accelerator
* Direct Memory Access Controller (DMAC)
* Micropython Support
* Firmware encryption support
* On-board Hardware resources:
- Flash: 16M
- Camera :OV7740
- Button: button * 2
- External storage: TF card/Micro SD
- Interface: HY2.0/compatible GROVE

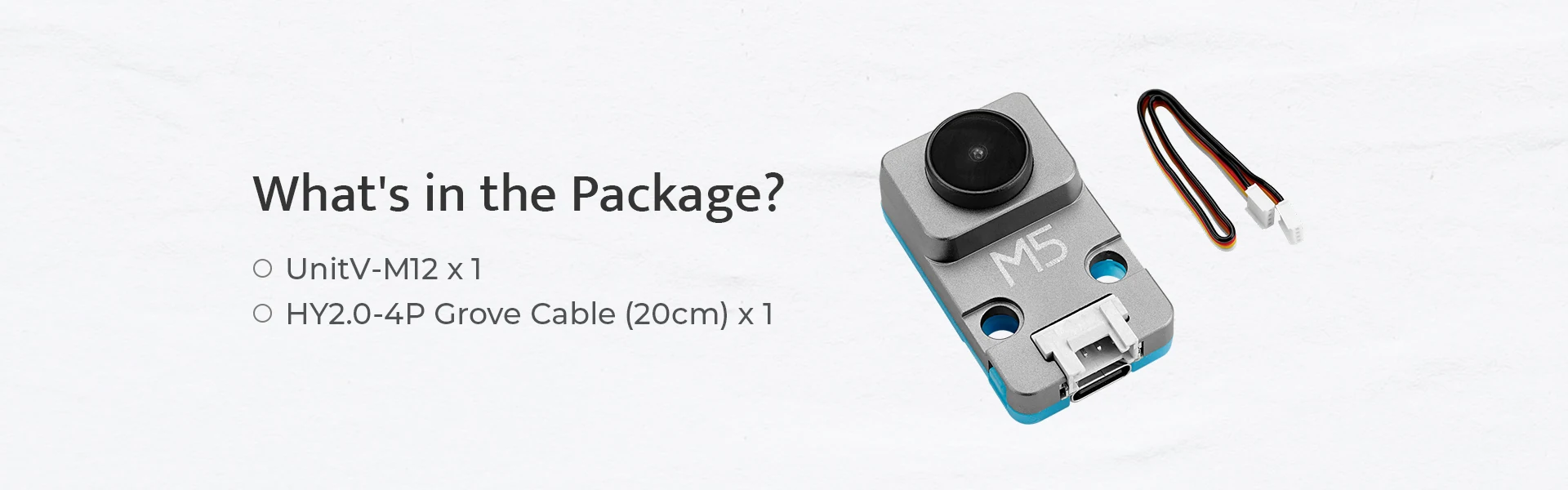

Includes
1x Unit V M12
1x 20cm 4P Grove Cable
1x 100cm USB-C Cable
Applications
* Face recognition/detection
* Object detection/classification
* Obtaining size and coordinates of the target in real-time
* Obtaining the type of detected target in real-time
* Shape recognition
* Video recorder

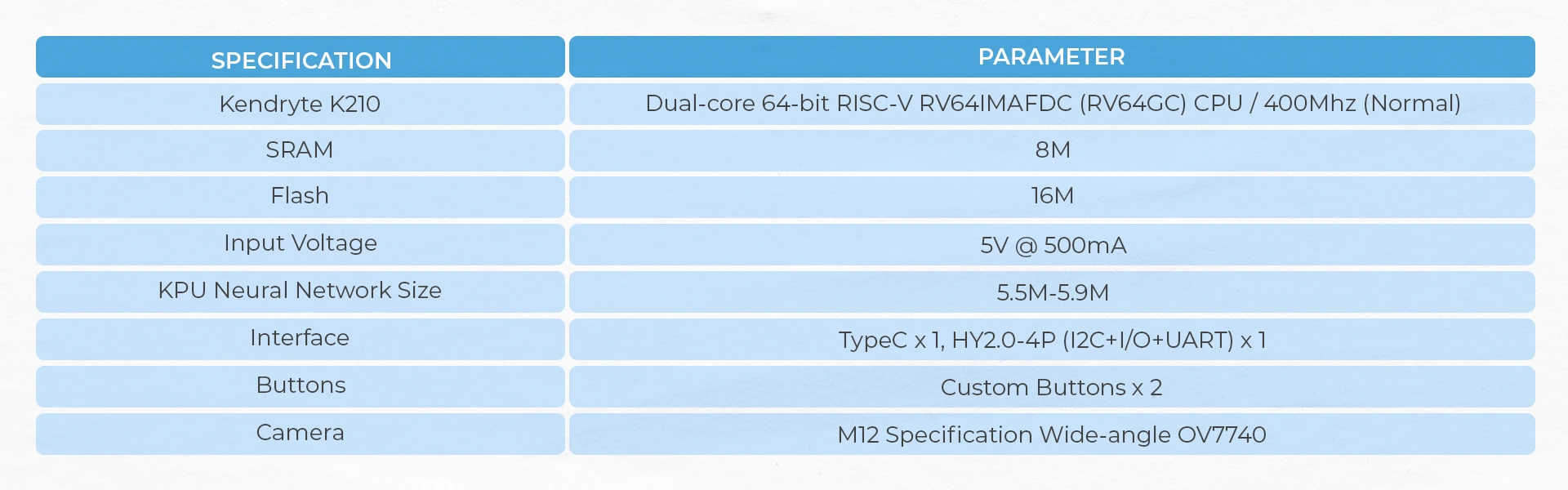

Specification
Products related to this item
RoverC.Pro (K036-B)
CORE2 (K010)
CoreS3 (K128)
AtomS3 (C123)
StampS3 (S007)
CORE2 FOR AWS (K010-AWS)
BASIC (K001)
SD card test
UNIT-V does not currently recognize all types of MicroSD cards. We have tested some common SD cards. The test results are as follows.
PinMap
Module Size
